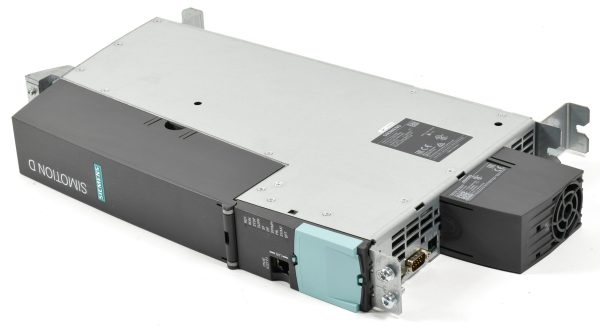

SIMOTION Блок управления приводом D425-2 DP/PN; программируемый контроллер движения; 6AU1425-2AD00-0AA0

Основные характеристики

product brand name SIMOTION
product type designation D425-2 DP/PN
Performance class for motion control system BASIC Performance
Version of the motion control system Multiple-axis system
PLC and motion control performance
number of axes / maximum 16
Minimum PROFIBUS cycle clock 1 ms
Minimum PROFINET send cycle clock 0.25 ms
Minimum interpolator cycle clock 0.5 ms
Minimum servo cycle clock 0.5 ms
Integrated drive control / header
Maximum number of axes for integrated drive control
● servo 6
● vector 6
● V/f 12
● note Alternative control modes; drive control based on SINAMICS S120 CU320-2,
firmware version V4.x/V5.x
Memory
RAM (work memory) 78 Mbyte
Additional RAM work memory for Java applications 20 Mbyte
RAM disk (load memory) 38 Mbyte
Retentive memory 364 kbyte
Persistent memory (user data on CF) 1.5 Gbyte
