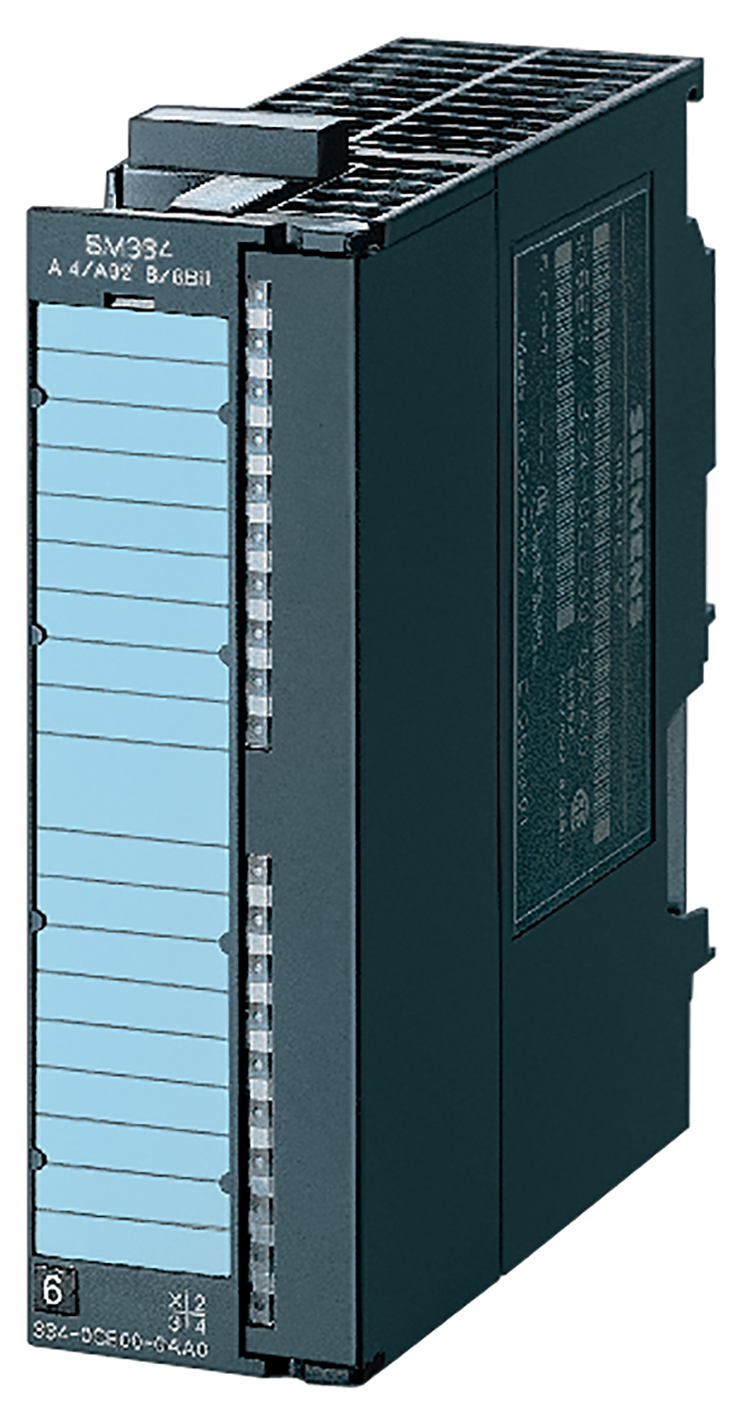

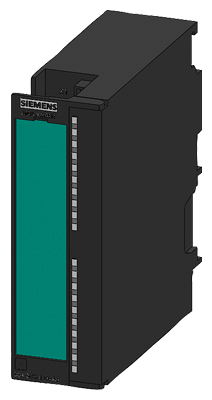

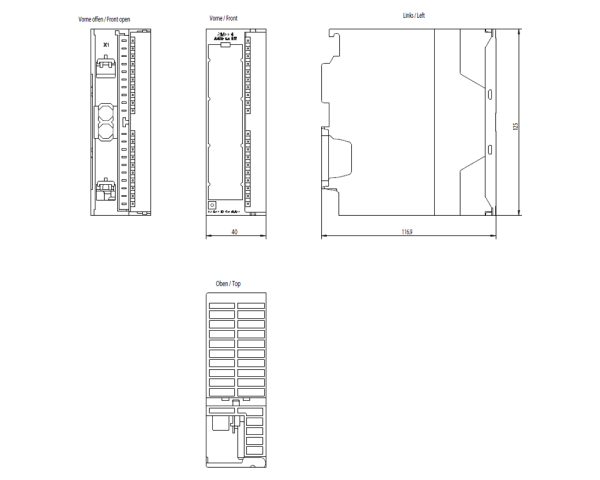

SIMATIC S7-300, Analog module SM 334 6ES7334-0CE01-0AA0

Основные характеристики

Supply voltage
Load voltage L+
● Rated value (DC) 24 V

Input current
from supply and load voltage L+ (without load), max. 110 mA
from backplane bus 5 V DC, max. 55 mA

Power loss
Power loss, typ. 3 W

Analog inputs
Number of analog inputs 4
● For voltage measurement 4
permissible input voltage for voltage input (destruction limit), max. 20 V
permissible input current for current input (destruction limit), max. 40 mA
Cycle time (all channels) max. 5 ms

Input ranges
● Voltage Yes
● Current Yes
● Thermocouple No
● Resistance thermometer No
● Resistance No

Input ranges (rated values), voltages
● 0 to +10 V Yes
— Input resistance (0 to 10 V) 100 kΩ
