6ES7153-4AA01-0XB0_datasheet_en
Основные характеристики
General information

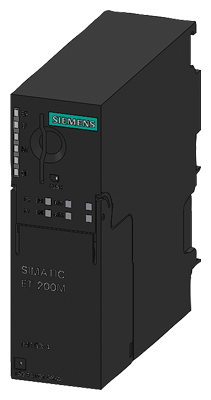

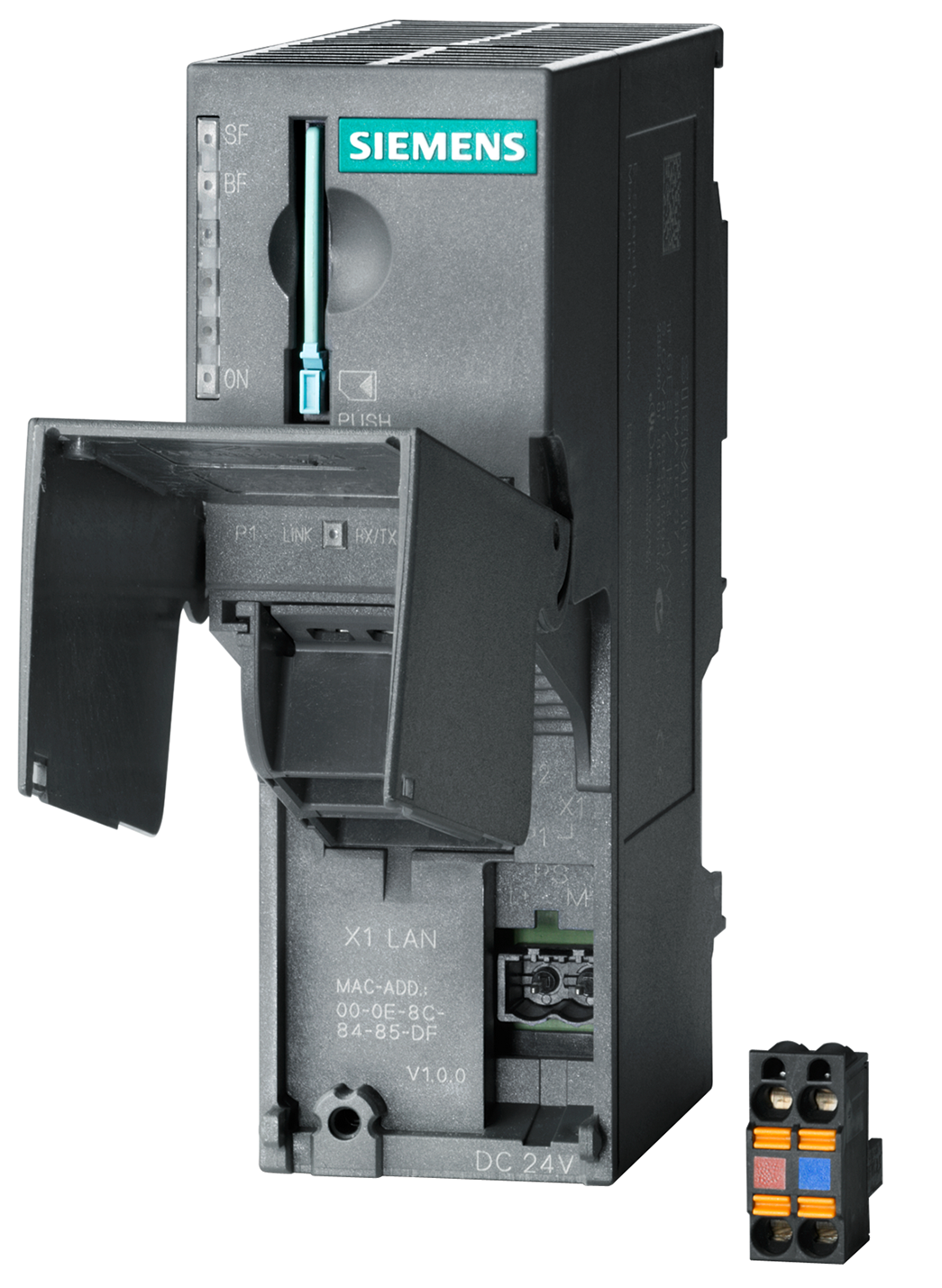

Product type designation IM 153-4 PN ST
Vendor identification (VendorID) 002AH
Device identifier (DeviceID) 0302H
Supply voltage
Rated value (DC) 24 V
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
external protection for power supply lines (recommendation) In a construction with grounded reference potential, a fuse is necessary for
redundant interface modules (Recommendation: 2.5 A)
Mains buffering
● Mains/voltage failure stored energy time 5 ms
Input current
Current consumption, max. 600 mA; with 24 V DC supply
Inrush current, typ. 4 A
I²t 0.09 A²·s
output voltage / header
Rated value (DC) 5 V
Output current
for backplane bus (5 V DC), max. 1.5 A
Power loss
Power loss, typ. 6 W
