Push-Pull Разъем FFA.2C.306.CLAC72

Описание

FFA.2C.306.CLAC72

Основные характеристики

Contact Termination Low voltage
Solder

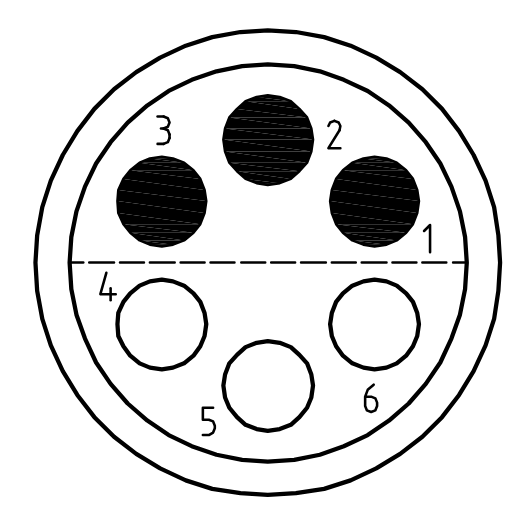

Insert configuration value
2C.306 – 6 Low Voltage
Insulator
L: PEEK (UL 94 / V-0/1.5)
Rated current
12 Amps
Vtest
1500 V (AC), 2100 V (DC)
Contact Type
Solder
Bucket Dia.
1
Contact Dia.
1.3
Number of contacts Low Voltage
6
Wire Size/AWG
28 – 20
